M26542/8-01 (150 Ohm)

Model: 4110-CA
Availability: 14 - 21 Days

Qty: - OR - Add to Wish List
Add to Compare

General Description
Color(s)	Black
Made in the USA	Yes

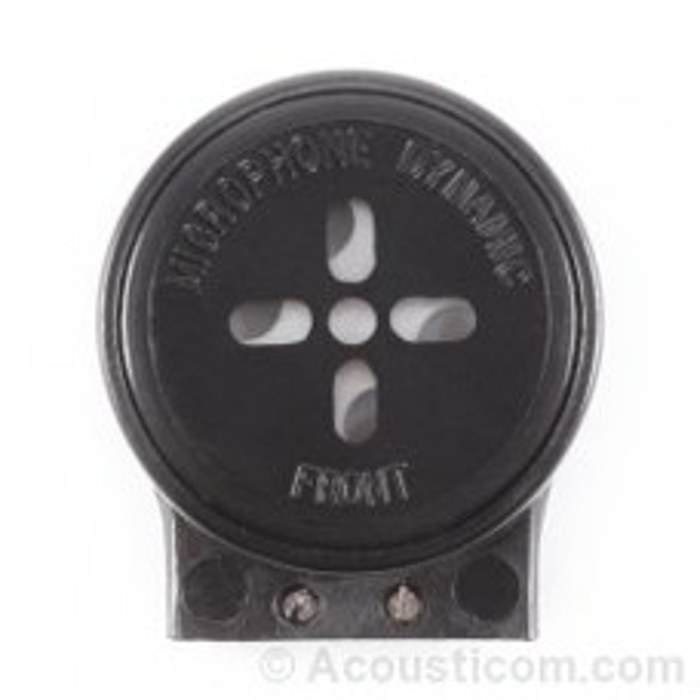

Short Description	M-101 Aviation Dynamic Microphone (150 Ohm)
# of Pieces	1
Weight	10 g (0.4 oz)
Length	29.9mm / 1.178 in
Width	26.4 mm / 1.039 in
Height	13 mm / 0.5 in
MIL Spec	MIL-PRF-26542/8
Microphone Specifications
Adjustable Gain	No
Altitude Compensation	50,000 ft
Distortion	6% @ 114dB
Element Type	Dynamic
Frequency Response	200Hz to 6000Hz
Impedance	150 ohms
Sensitivity at Ground Level	36.90dB to 42.92dB (re 1uv)
Termination	U-173/U
Known Part Numbers
Carter Engineering	CE133/150
David Clark	09168P-27
Other	N535004-03, MC-101-150
NSN	5965-01-277-8589, 5965-00-946-2021
