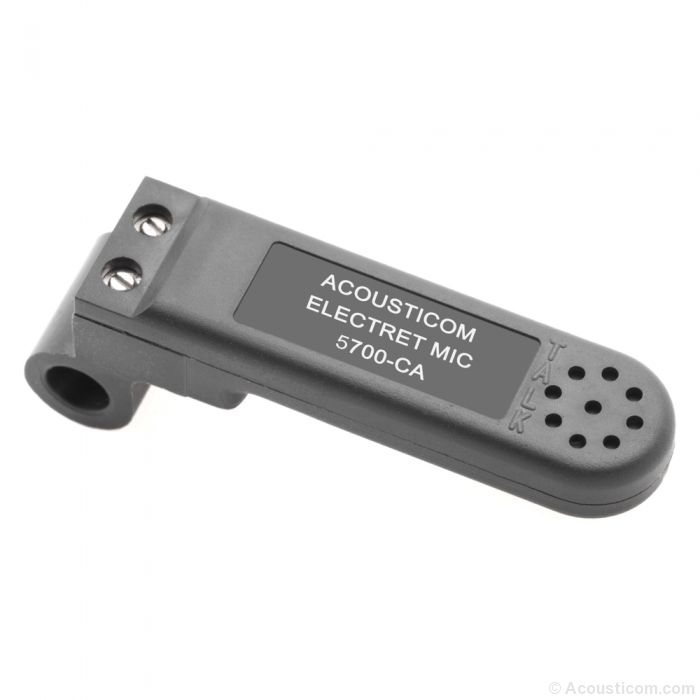

Aviation Microphone (M-7/DC)

ZOOM

Brand: Acousticom
Model: 5700-CA
Availability: 58

Price: $37.00 $29.99

Qty: - OR - Add to Wish List
Add to Compare

76 reviews | Write a review

Description Specification Reviews (76) Combo Deals Optional (3)

General Aviation Microphone
For helmets and headsets
M-7/DC aftermarket replacement
Amplified Electret
Noise Canceling
NSN: 5965-01-424-2939
Aftermarket David Clark M-7/DC Amplified Electret Microphone / 09168P-31 Replacement
Fits hinge style booms. (Flex Boom Version: 5720-CA)
Ruggedized Commercial / Military

*When replacing your headset's microphone, you may be required to adjust your microphone's sensitivity setting on your equipment. You should always tune your equipment's microphone settings after replacing any aviation microphone.

** Try our adjustable aviation microphone for quick access sensitivity controls directly on the microphone.

***This microphone can be used to convert a David Clark H10-76 military headset to function in a civilian aircraft.

General Description
Color(s)	Black
Includes	Microphone Only
Made in the USA	Yes
Short Description	This is a noise cancelling aviation electret microphone.
# of Pieces	1
Weight	.29 ounces (8.16 grams)
Length	2 in (5.08 cm)
Testing Standard	MIL-STD-810E
Width	.5 in (1.27 cm)
Height	.752 in (1.91 cm)
Material(s)	High Strength ABS Plastic, Corrosion Resistant Metals
Microphone Specifications
Altitude Compensation	25,000 feet
Distortion	6% @ 114dB
Element Type	Amplified Electret
Frequency Response	100 Hz to 10,000 Hz
Impedance	150 ohms
Noise Cancellation	15 dB
Sensitivity at Ground Level	86dB- 98dB @ 1.0 kHz/94dB input
Supply Voltage	9-28V DC (not polarity sensitive)
Termination	U-173/U Plug
Enviromental
Immersion	0 feet
Temperature Range	-55C to +85C
Water Resistant	No
Waterproof	No
Compatible Headsets
Avcom	AC-200 PNR, AC-260 PNR, AC-454 PNR
David Clark	40260G-01, 40565G-01,40694G-01, H10-76
Flightcom	4DX
Rugged Radios	RA200, RA250, RA454, RA600
Sigtronics	S-20, S-20Y, S-40, S-40H, S-45, S-45H, S-68Y, S-45S, S-45Y
SoftComm	C-45-10, C-40, C-40-10, C-40-20, C-45-10, C-46
Compatible Helmets
Alpha Eagle	200, 203, 400, 410, 900, 901, 903
Gentex	HGU-56/P, HGU-84/P, SPH-4, SPH-4B, SPH-5
MSA Gallet	050, 250, 350
Warranty
Length	1 Year
Warranty Type	Limited Warranty
Coverage	Manufacturer will replace defective product. Coverage does not include items that have been damaged by user error.
Extended Warranty Option	None
Known Part Numbers
Carter Engineering	CE978
David Clark	M-7/DC, 09168P-31, M-4, 09168P-30, 18762G-02
Electro-Voice	978-1550
Gentex	N100226-00, N100226-00, N100226-01, N100914, N100914-00, N100914-02, 5060-4
Jepp Direct	VLH1265, VLH1264, VL2G0241, VLH1074
Pilot USA	PA-5, PA-5X, 1142-22
WWP	A1060
NSN	5965-01-424-2939
