U-94A/U Jack (TJS-102)
 Click to enlarge |
|

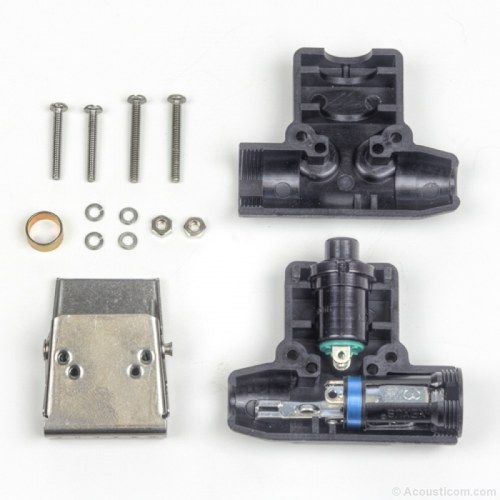

This unit comes unassembled.

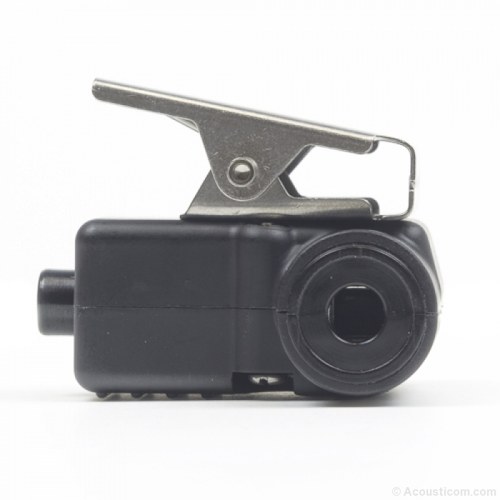

Mates with Nexus Series TP-120 plugs and plugs TP-101 and TP-102. Combines a jack similar to TJ-102 with a momentary contact push-button switch and a clothing clip.
| General Description | |
| Dimensions | 1.625 X 2.156 X 2.359 (inches) |
| Standard | MIL-C-9177 |
| Uses | Commercial / Military Connector with monetary PTT functionality. |
| Connector Specifications | |
| Conductors | 4 |
| Contact Diameter | .285 in |
| Contact Material | Nickel Plated Beryllium Copper |
| Contact Resistance | ≤ .02 O |
| Dielectric Withstanding Voltage (RMS) | ≥ 500 V |
| Insertion Force Maximum | 13 lbs |
| Insulation Resistance | ≥ 1,000 mO |
| Mates with | U-174/U, U-174, U-93A/U |
| Shell Material | Plastic |
| Solder Contact Terminals | Pre-tinned over Nickel Plating |
| Withdrawal Force | 6 to 10 lbs |
| Cross Referenced Part Numbers | |
| Military | M9177/5-2, U-94A/U |
| NSN | 5935-00-518-8843 (cancelled), 5935-00-553-9352, 5999-00-553-9352, 5999-01-540-3645 |
| Other | MILP9222, 749691-501, SCD35602-2, 5L4531-001-08, 749691-501, K2963 584, 420925, 2166, 53C13468, 119552, 53D13468 |
