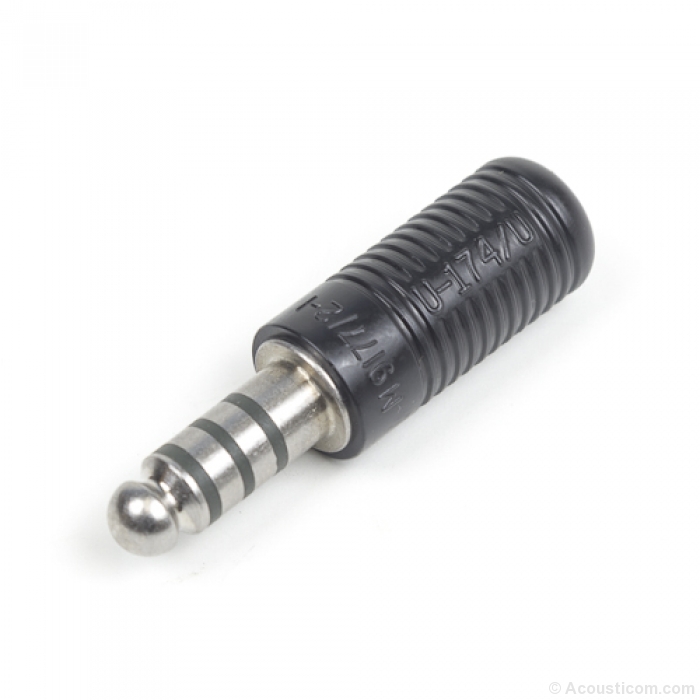

U-174/U (TP-101)

Brand: Amphenol Nexus
Model: 5640-CO
Availability: 78

Price: $23.02

Qty: - OR - Add to Wish List
Add to Compare

Description Specification Reviews (3) Optional (9)

General Description
Color(s)	Black

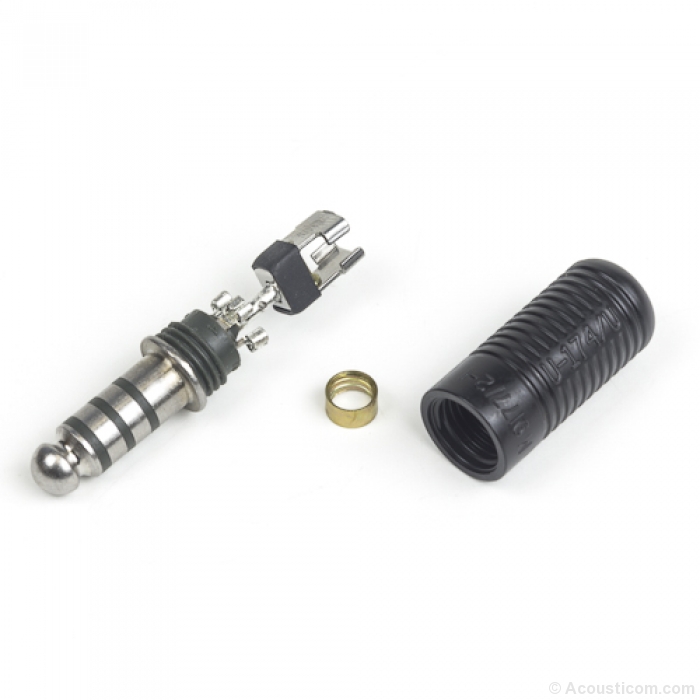

# of Pieces	3

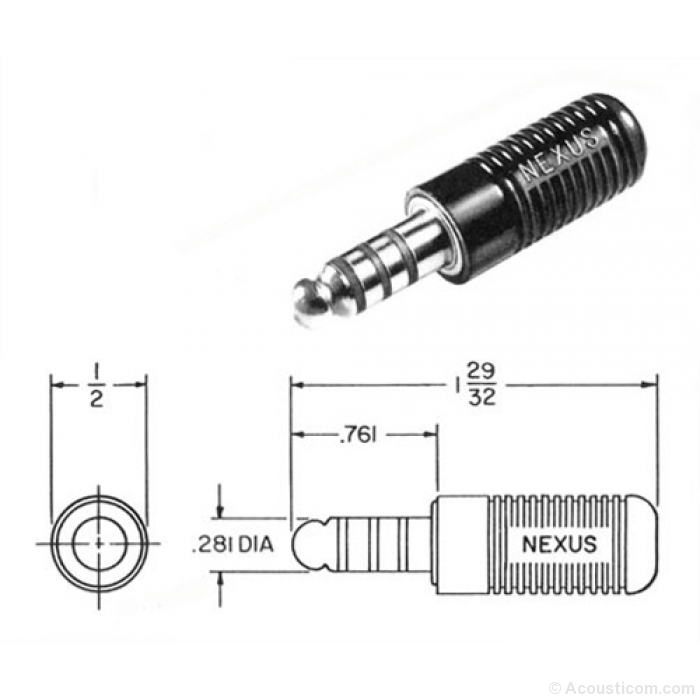

Length	1.906 in
Diameter	.500 in
Compliance	ISO 9001:2008 CERTIFIED
MIL Spec	MIL-C-9177
Connector Specifications
Conductors	4
Contact Diameter	.281 in
Contact Length	.761 in
Shell Material	Plastic
Contact Material	Monel
Solder Contact Terminals	Pre-tinned over Nickel Plating
Contact Resistance	≤ .02 O
Insulation Resistance	≥ 1,000 mO
Dielectric Withstanding Voltage (RMS)	≥ 500 V
Insertion Force Maximum	13 lb
Withdrawal Force	6 to 10 lb
Mates with	U-92A/U, TJ-101, TJ-120, U-94A/U, TJT-120
Compatible Headsets
David Clark	H10-76
Known Part Numbers
David Clark	09226P-02
MIL P/N	M9177/2-1, U-174/U
NSN	5935-00-246-2383
