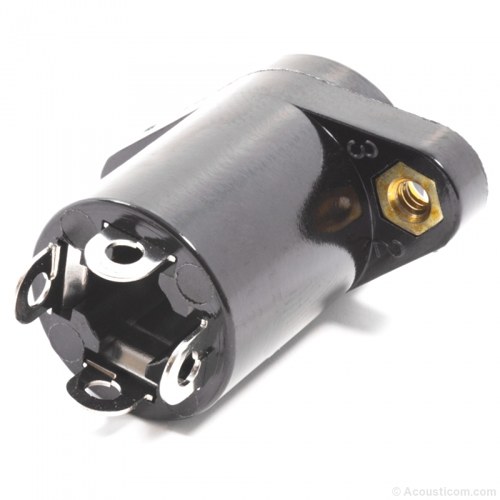

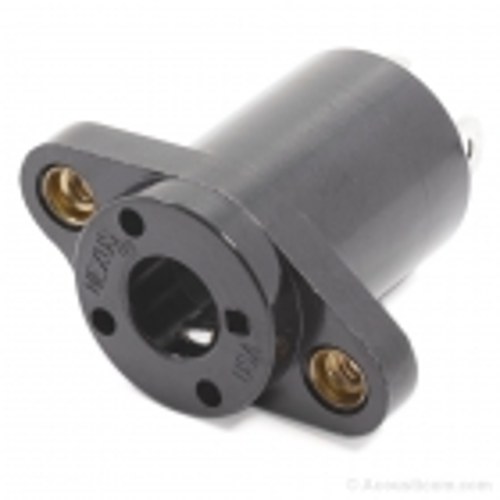

TJ-120 Panel Mount
Model: 1200-CO
Reward Points: 4
Availability: In Stock
Reward Points: 4
Availability: In Stock
Price: $16.00
Price in reward points: 160
Price in reward points: 160
Qty:
- OR -
Add to Wish List
Add to Compare
Add to Compare
| General Description | |
| Color(s) | Black |
| # of Pieces | 1 |
| Weight | .224 ounces ( 6.35 grams) |
| Length | 1.125 in ( 2.86 cm) |
| Width | .625 in ( 1.59 cm) |
| Height | 1.188 in ( 3.02 cm) |
| Compliance | ISO 9001:2008 CERTIFIED |
| Connector Specifications | |
| Conductors | 4 |
| Contact Diameter | .285 in ( .724 cm) |
| Thread | #4-40 UNC-2B |
| Contact Length | .188 in ( .478 cm) |
| Body Material | Phenolic |
| Shell Material | Plastic |
| Contact Material | Nickel Plated Beryllium Copper |
| Solder Contact Terminals | Pre-tinned over Nickel Plating |
| Contact Resistance | ≤ .02 O |
| Insulation Resistance | ≥ 1,000 mO |
| Dielectric Withstanding Voltage (RMS) | ≥ 500 V |
| Insertion Force Maximum | 13 lb |
| Withdrawal Force | 6 to 10 lb |
| Mates with | TP-120, TP-101, TP-102, TPSJ-101 |
| Known Part Numbers | |
| Acousticom | 1200-COM |
| Nexus | TJ-120 |
