TJGT-120 Panel Mount
Model: 1202-CO
Reward Points: 6
Availability: 21 - 30 Days (CALL)
Reward Points: 6
Availability: 21 - 30 Days (CALL)
Price: $25.00
Price in reward points: 250
Price in reward points: 250
Qty:
- OR -
Add to Wish List
Add to Compare
Add to Compare

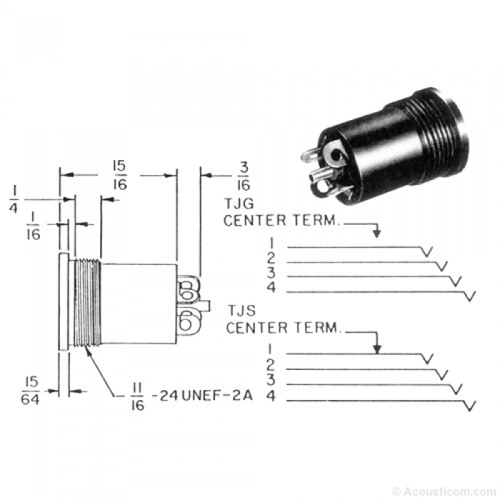

- TJGT-120
- Mates with TP-120, U-174/U, U-93A/U, TPSJ-101
- Threaded panel mount jack
- Extra contact added in an open circuit
- Ruggedized Commercial / Military
- Thread: 11/16-24 UNEF-2A
Threaded front-mounted jack with an extra contact added in a normally open circuit with #1 contact. Insertion of a 4-conductor plug closes the #1-5 contact circuit.
| General Description | |
| Color(s) | Black |
| # of Pieces | 1 |
| Length | 1.312 in |
| Width | .719 in |
| Height | .719 in |
| Compliance | ISO 9001:2008 CERTIFIED |
| Connector Specifications | |
| Conductors | 5 |
| Contact Diameter | .285 in |
| Thread | 11/16-24 UNEF-2A |
| Contact Length | .375 in |
| Shell Material | Plastic |
| Contact Material | Nickel Plated Beryllium Copper |
| Solder Contact Terminals | Pre-tinned over Nickel Plating |
| Contact Resistance | ≤ .02 O |
| Insulation Resistance | ≥ 1,000 mO |
| Dielectric Withstanding Voltage (RMS) | ≥ 500 V |
| Insertion Force Maximum | 13 lb |
| Withdrawal Force | 6 to 10 lb |
| Known Part Numbers | |
| Nexus | TJGT-120 |
