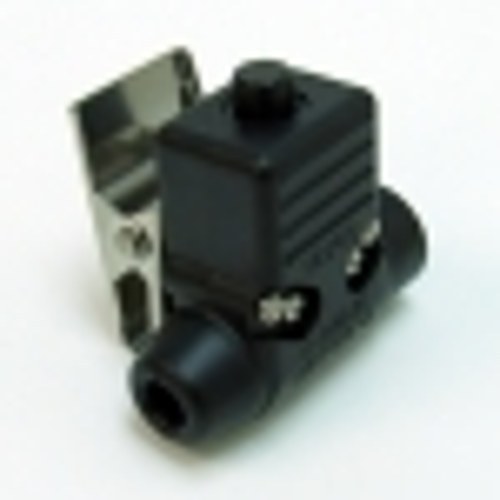

U-93A/U (TP-102)
Model: 5093-CO
Availability: In Stock
Availability: In Stock
Price: $48.00
Price in reward points: 480
Price in reward points: 480
Qty:
- OR -
Add to Wish List
Add to Compare
Add to Compare
- U-93A/U
- Mates with U-92A/U, TJ-101, TJ-120
- Cable mount 4 conductor plug
- Ruggedized Commercial / Military
| General Description | |
| Color(s) | Black |
| # of Pieces | 3 |
| Length | 2.312 in |
| Diameter | .781 in |
| Compliance | ISO 9001:2008 CERTIFIED |
| MIL Spec | MIL-C-9177 |
| Connector Specifications | |
| Conductors | 4 |
| Contact Diameter | .281 in |
| Contact Length | .761 in |
| Shell Material | Plastic |
| Contact Material | Nickel Plated Brass |
| Solder Contact Terminals | Pre-tinned over Nickel Plating |
| Contact Resistance | ≤ .02 O |
| Insulation Resistance | ≥ 1,000 mO |
| Dielectric Withstanding Voltage (RMS) | ≥ 500 V |
| Insertion Force Maximum | 13 lb |
| Withdrawal Force | 6 to 10 lb |
| Mates with | U-92A/U, TJ-101, TJ-120 |
| Known Part Numbers | |
| Acousticom | 5093 |
| MIL P/N | M9177/1-1, U-93A/U |
| Nexus | TP-102 |
| NSN | 5935-00-642-0626 |
