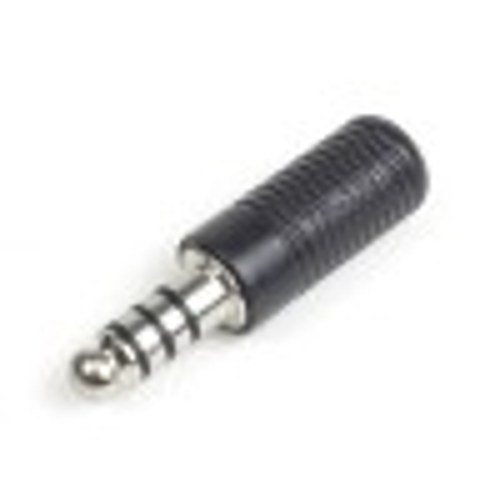

U-174 (TP-120)
Model: 5641-CO
Reward Points: 4
Availability: In Stock
Reward Points: 4
Availability: In Stock
Price: $18.00 $15.00
Price in reward points: 150
Price in reward points: 150
Qty:
- OR -
Add to Wish List
Add to Compare
Add to Compare
- U-174
- Mates with U-92A/U, TJ-101, TJ-120, U-94A/U, TJT-120

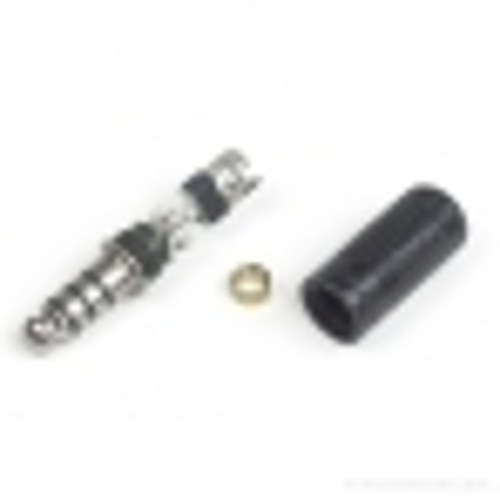

- Cable mount 4 conductor U-174 plug
- Easier installation compared to the U-174/U
- Ruggedized Commercial
| General Description | |
| Color(s) | Black |
| # of Pieces | 2 |
| Length | 1.906 in |
| Diameter | .500 in |
| Compliance | ISO 9001:2008 CERTIFIED |
| Connector Specifications | |
| Conductors | 4 |
| Contact Diameter | .281 in |
| Contact Length | .761 in |
| Body Material | Plastic |
| Shell Material | Plastic |
| Contact Material | Nickel Plated Brass |
| Solder Contact Terminals | Pre-tinned over Nickel Plating |
| Contact Resistance | ≤ .02 O |
| Insulation Resistance | ≥ 1,000 mO |
| Dielectric Withstanding Voltage (RMS) | ≥ 500 V |
| Insertion Force Maximum | 13 lb |
| Withdrawal Force | 6 to 10 lb |
| Mates with | U-92A/U, TJ-101, TJ-120, U-94A/U, TJT-120 |
| Known Part Numbers | |
| Acousticom | 5640 |
| Nexus | TP-120 |
| Other | U-174 |
